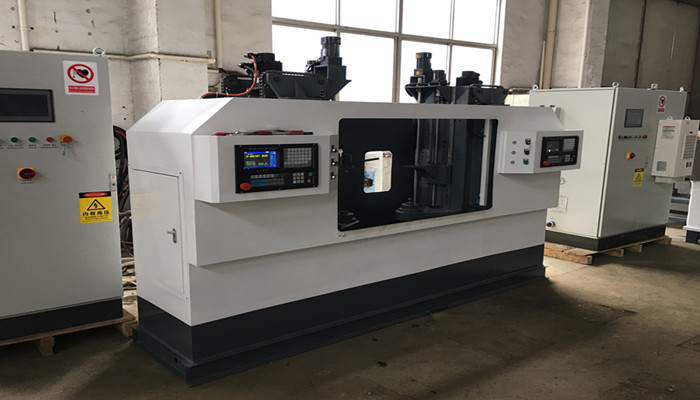

The complete shaft hardening machine consist of an induction heating machine, CNC hardening tool, cooling water, hardening transformer and induction coils.
1. Adopt DSP digital control module
2. Touch screen display
3. Intelligent protection system and fault self-diagnosis
4. The function is advanced and the quality is stable.
|
Model type |
FHG-300B |
|
Input power |
300KVA |
|
Input voltage |
380V 50HZ |
|
Max input current |
Single phase 450A |
|
Oscillating frequency |
20-40KHZ |
|
Inverted power |
≤300KVA |
|
Water pressure |
0.15MPA≤water pressure≤0.3MPA |
|
Product size(mm) |
Main body: 1500X620X1150 Transformer: 1030X500X800 |

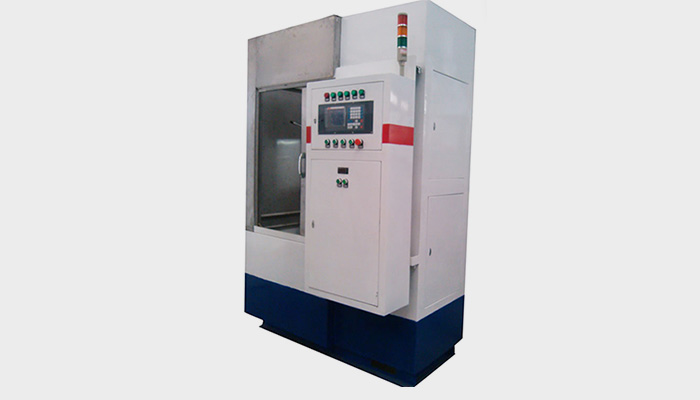

CNC shaft hardening machine is match product developed by our company. It adopts CNC control system, with the power supply, all kinds of shaft parts can satisfy the rated technical request with continuous hardening, stage simultaneous hardening,etc function. Suitable for automobile, motorcycle ,machine tools ,and other industries of heating treatment production, quenching medium storage tank and lathe bed design, reduce the floor space.
1. Adopts soft water, don’t block the pipeline.
2. Small volume and can be moved according to need.
3. Low energy consumption, simple operation.
The machines are mainly used in hardening of gear, drive shaft. fork, tube surface,etc.
1. Are you factory direct?
Yes, we are.
2. What is warranty?
All machine warranty period is 12 months.
3. What kind of packing?
All machines are packed with plywood case.
4. What is your machine price?
We first know your heating material, heating speed and temperature, other request, and then suggest suitable machine models.
5. Can you customized the logo, color and others?
Yes, we can.
6. How do you control the quality?
We have a QC team comply with TQM to ensure the quality. We will take photos and shoot a video for you if you need.

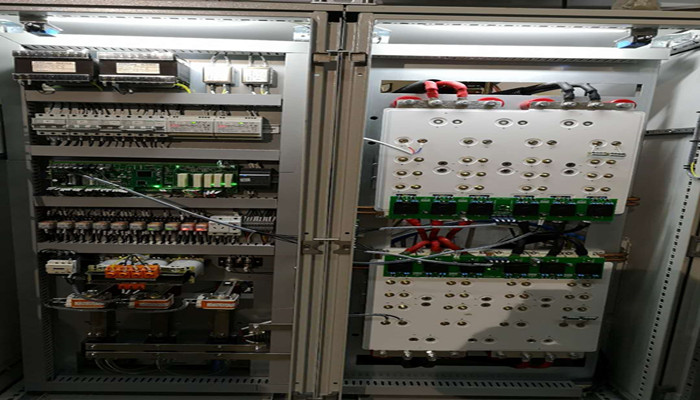

The internal structure of induction heating equipment is complex, including power module, induction coil, control system, cooling system, protection circuit, transformer, capacitor, connection cable, housing and rack and other key components. These components work together to achieve an efficient and precise heating process.
Get Started

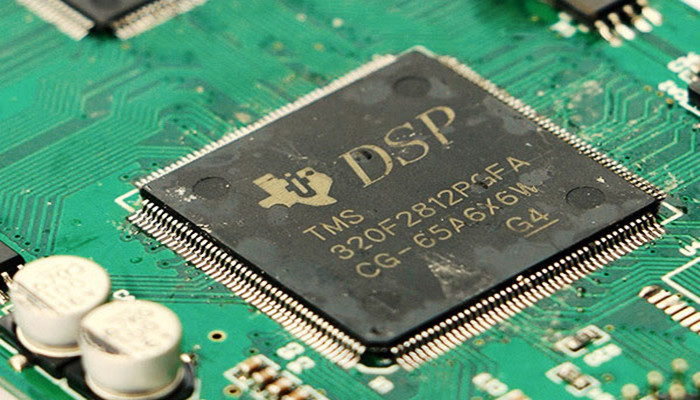

The control board is one of the core components of the induction heating equipment, which is responsible for managing and regulating the operating state of the equipment to ensure the accurate control of the heating process.
Get Started

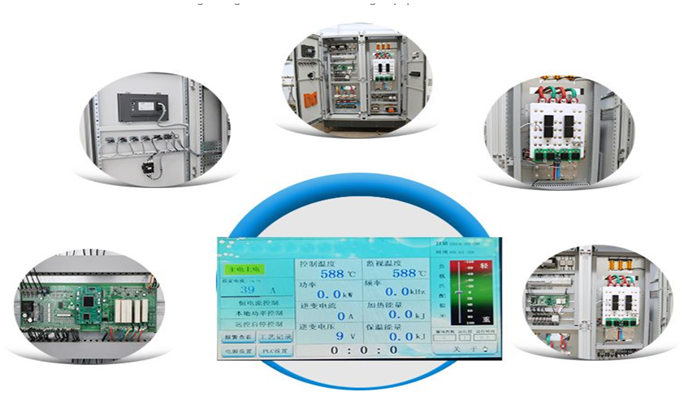

Induction heating equipment details: Power module: provides high frequency alternating current, usually using IGBT or MOSFET and other power devices. Induction coil: produces alternating magnetic field, shape and size according to the workpiece design. Control system: adjust frequency, power and other parameters to achieve accurate control. Cooling system: to prevent equipment overheating, commonly used water cooling or air cooling.
Get Started
DSP High frequency induction heating machine heating power supply is adopted, and the main inverter circuit is controlled separately.
Product name: Conveying straight pipe
Product specifications: φ120×500-3500mm
Product name: Thick steel plate
Product specifications: 1000×100mm
Product name: Car anti-collision bar
Product specifications: φ35×1300mm
