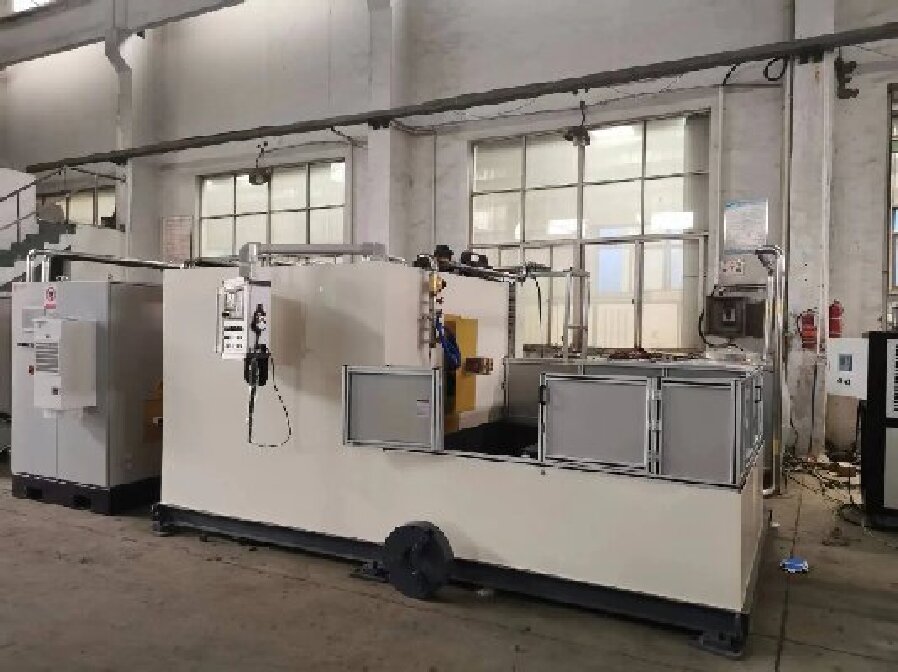

Vertical full automatic CNC quenching machine uses servo CNC control system, the stepper motor drive spindle motor with variable frequency design of human nature. Small size, low failure rate, human-machine interface programming, convenient and reliable operation easy to learn.This product include fully enclosed and semi-enclosed sub (it can be customized according to user needs). It is applied to the shaft of processing demanding, rodents, and irregular parts of the quenching(such as a variety of shaft,screw, gear, driving wheel, etc.)
|
Model |
Heating length(mm) |
Swing ΦA |
Clamping weight |
Feeding speed |
Transmission mode |
Weight (kg) |
Outer size(mm) |
|
FH48-60Y |
600 | 300 | 250 |
1-200 |
hydraulic |
850 |
1460X600X1800 |
|
FH48-60J |
100 |
1-80 |
mechanical |
800 | |||
|
FH48-60S |
1-120 |
servo |
800 | ||||
|
FH48-80Y |
800 | 400 | 250 | 1-200 |
hydraulic |
950 |
1460X600X2070 |
|
FH48-80J |
150 | 1-80 |
mechanical |
900 | |||
|
FH48-80S |
150 | 1-120 |
servo |
900 | |||
|
FH48-120Y |
1200 | 400 | 250 | 1-200 |
hydraulic |
1250 |
1460X600X2500 |
|
FH48-120J |
150 | 1-80 |
mechanical |
1200 | |||
|
FH48-120S |
1-120 |
servo |
1200 |
The CNC quenching machine adopts a double-station and double-load structure, a set of power supply with two sets of induction heating load, and through the load, the switcher realizes two stations alternate heating.
Station 1 is used for three-column groove and CVJ e induction quenching, with parts positioning, pneumatic chuck clamping, horizontal movement lifting movement to the place of induction quenching.
Station 2 for shaft rod induction hardening. With parts installed in place, induction coil feed in place, parts rotation induction quenching working functions.
1. This CNC hardening machine tool has the transformer rise and fall movement, advance, and retreat movement, spindle rotation quenching mode.
2. Has the continuous hardening, simultaneous quenching, piece wise continuous quenching, and piece wise simultaneous quenching functions
3. During the hardening period, the induction hardening machine power and induction heating coil moving speed can be changed as request.
4. The machine is equipped with an induction heating quenching quality monitoring system, which can display, record, store, and query the induction heat treatment process parameters in real time.
5. This CNC hardening machine is mainly used in all kinds of shaft surface heating hardening jobs, like camshaft, crankshaft, small shafts, joint, and so on.
1.Can you send engineers to us for technical installation?
Yes, we can.But you must guarantee our engineer personal safety.
2.After the warranty period, what kind of service do you support?
We will keep on providing the technical service and machine regular maintenance service.
3.How can I get your installation service?
For simple machine, we will provide installation instructions and videos. For complex products, if you need, we will arrange for a skilled engineer to provide door-to-door guidance.
1. We are the top induction heating machine supplier, no agents.
2. We have strong technical team for 19 years product experience and make sure the delivery time.
3. The main components are mainly the international brand, stable and safe.
4. We have professional after-sales teams, and solve the customer problem in time.
1. Factory direct delivery goods.
2. 24 hours of technical service
3. 20 year experience in product making and application
4. In stock, 12 months warranty periods
5. Lifetime technical and accessory support
The display screen is the core part of the control system and is used to monitor and operate the quenching process. Its functions include real-time monitoring, operation control, fault alarm and data recording.
