For brazing job: The larger the welding volume is, the lower the frequency should be.
For forging: Choose the right power according to the production efficiency, the higher the power, the faster the speed. Specific technical proposal consult company technical personnel.
For heat treatment: In combination with the shape of the workpiece, quenching mode, quenching hardness, quenching layer requirements, and materials, the specific technical personnel can be consulted.
For melting: It depends on the furnace and production efficiency.
|
Model |
FHG-40 |
FHG-60 |
FHG-80 |
FHG-120 |
FHG-160 |
FHG-200 |
|
Input power |
40KVA |
60KVA |
80KVA120 |
120KVA |
160KVA |
200KVA |
|
Oscillating Frequency |
10-60KHZ |
10-60KHZ |
10-60KHZ |
10-40KHZ |
10-40KHZ |
10-40KHZ |
|
Max.output current |
60A |
90A |
120A |
180A |
240A |
300A |
|
Voltage |
380V±10% |
|||||
|
Water pressure |
0.15-0.30MPa |
|||||
|
Resonance mode |
Series resonance, parallel resonance |
|||||
1. Fast heating speed,Wide application fields.
2. Easy installation
3. Convenient to operate
4. Less power consumption
5. Adopt IGBT variable frequency control technology, high output power.
6. Most of the machine problems are caused by substandard water quality. The internal circulating water system is one of the supporting equipment specially designed by us to improve the stability of intermediate frequency power supply.

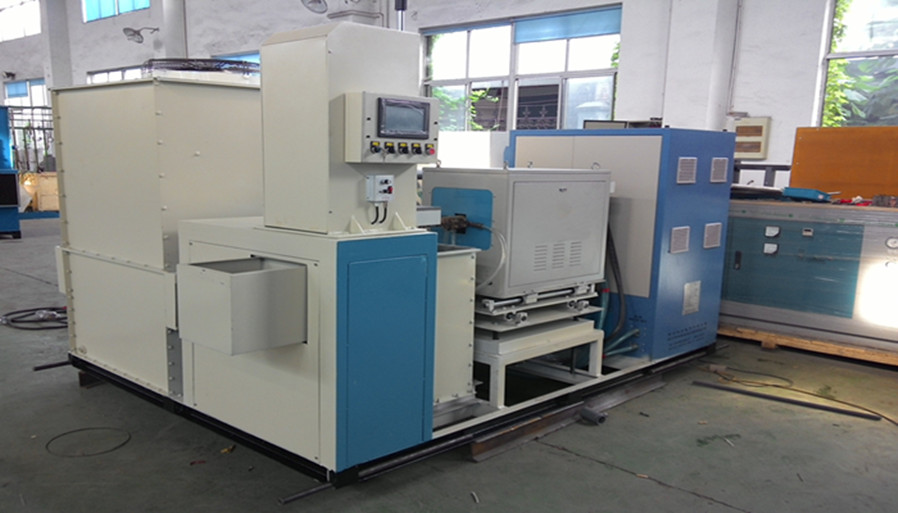

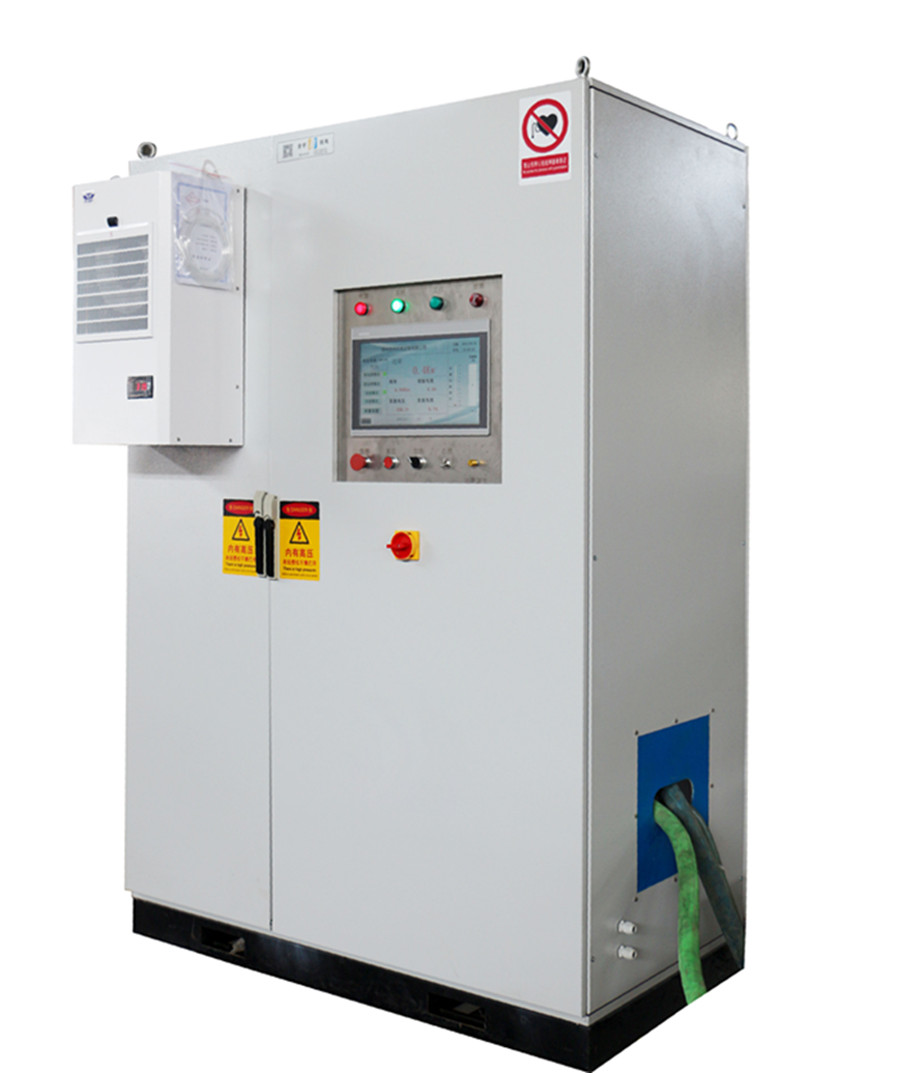

High frequency quenching machine system is mainly used for rolling heating, steel billet add temperature, hardening tempering, and forging, etc.
Induction heating machine 1set
Induction heating transformer 1 set
Induction heating coil 1 piece
Cables between the machine and the transformer 1 pair
Fuse 5 pieces
Manual book 1 piece
1.What is your machine price?
We first know your heating material, heating speed and temperature, other request, and then suggest suitable machine models.
2.Can you customized the logo, color and others?
Yes, we can.
3.How do you control the quality?
We have a QC team comply with TQM to ensure the quality. We will take photos and shoot a video for you if you need.
4.Does the quotation include freight?
The quotation is usually the arrival port for export to domestic ports. You could also arrange to your freight forwarding.
5.What are your payment terms?
Pay 30% T/T as advanced payment, the balance amount can be paid before shipment.
1. We are the top induction heating machine supplier, no agents.
2. We have strong technical team for 19 years product experience and make sure the delivery time.
3. The main components are mainly the international brand, stable and safe.
4. We have professional after-sales teams, and solve the customer problem in time.
1. Factory direct delivery goods.
2. 24 hours of technical service
3. Free workpiece test
4. 19 year experience in product making and application
5. In stock, 12 months warranty periods
6. Lifetime technical and accessory support

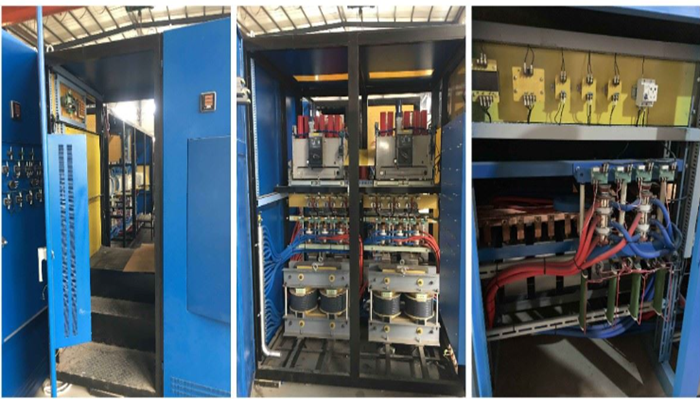

The internal structure of induction heating equipment is complex, including power module, induction coil, control system, cooling system, protection circuit, transformer, capacitor, connection cable, housing and rack and other key components. These components work together to achieve an efficient and precise heating process.
Get Started

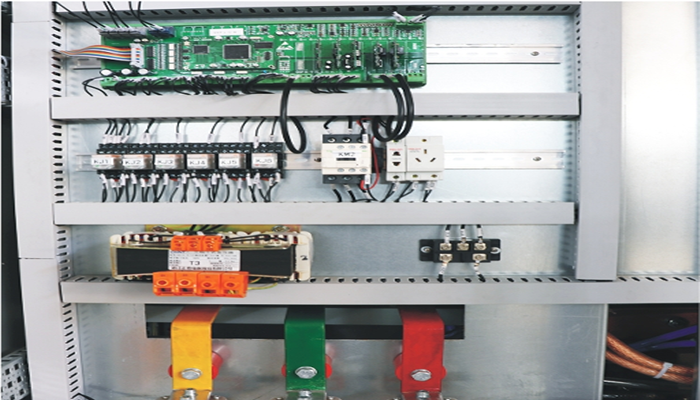

The chassis circuit board is the core part of the induction heating equipment, which is responsible for integrating and controlling the work of each component.
Get Started

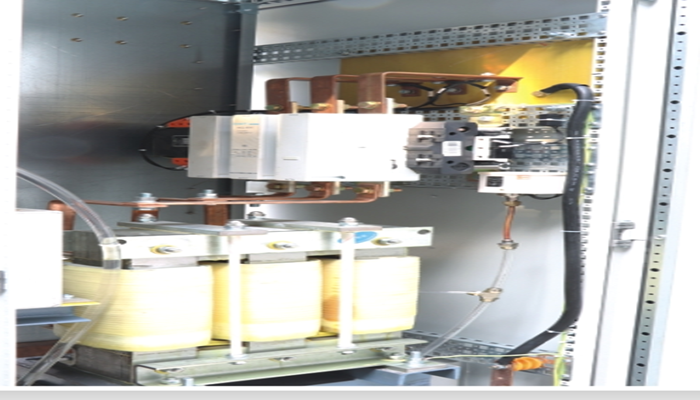

The filter circuit is an important part of ensuring the stable operation of equipment and reducing electromagnetic interference (EMI).
Get Started
DSP High frequency induction heating machine heating power supply is adopted, and the main inverter circuit is controlled separately.
Product name: Conveying straight pipe
Product specifications: φ120×500-3500mm
Product name: Thick steel plate
Product specifications: 1000×100mm
Product name: Car anti-collision bar
Product specifications: φ35×1300mm
Melting equipment is mainly used for the steel, alloy steel, cast iron and other ferrous metal materials and stainless steel, copper, aluminum, zinc and other non-ferrous metal material smelting.
