Induction heating is a kind of metal heating method by means of electromagnetic induction.The industrial induction heating machine is mainly used in welding, heat treatment, thermal matching, melting and so on.
The high frequency level, the less hardening depth, the lower frequency level, the depth hardening depth.
The machine power decides the heating speed, according to the workpiece weight, heating temperate, and heating speed request to choose the suitable machine type.
|
Model |
FHG-40 |
FHG-60 |
FHG-80 |
FHG-120 |
FHG-160 |
FHG-200 |
|
Input power |
40KVA |
60KVA |
80KVA120 |
120KVA |
160KVA |
200KVA |
|
Oscillating Frequency |
10-60KHZ |
10-60KHZ |
10-60KHZ |
10-40KHZ |
10-40KHZ |
10-40KHZ |
|
Max.output current |
60A |
90A |
120A |
180A |
240A |
300A |
|
Voltage |
380V±10% |
|||||
|
Water pressure |
0.15-0.30MPa |
|||||
|
Resonance mode |
Series resonance, parallel resonance |
|||||
1. Has the heat-hold-cool 3 time setting functions, separate regulation of the heating, and insulation power.
2. No high voltage, safety operation
3. 100% full load design, can 24 hours continuously working.
4. The metal heating process is optimized to achieve efficient and rapid heating.
5. Adopt IGBT variable frequency control technology, high output power.

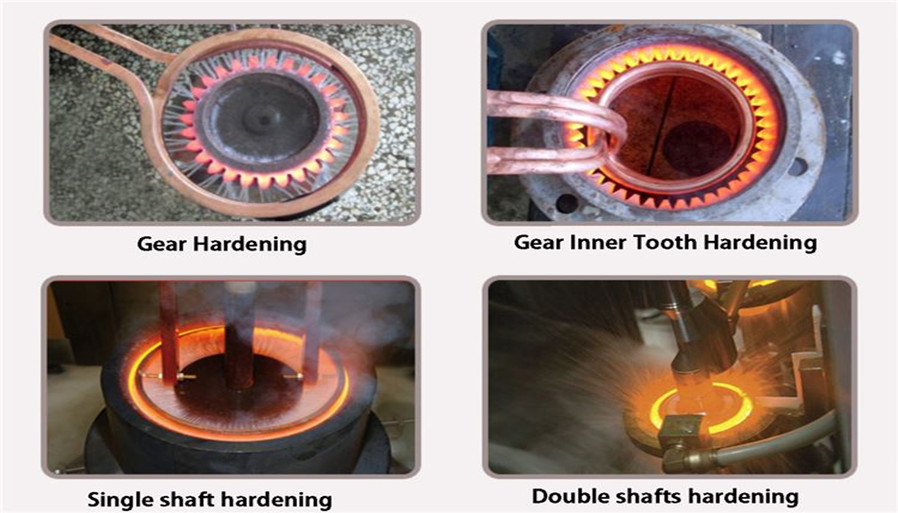

1. All kinds of gear and shaft heat treatment.
2. Carbon steel screws and stainless steel screws heated glue.
3. Wire and pipes continuous heating annealing.
4. All kinds of metal material brazing welding.
Induction heating machine 1set
Induction heating transformer 1 set
Induction heating coil 1 piece
Cables between the machine and the transformer 1 pair
Fuse 5 pieces
Manual book 1 piece
1.What is your machine price?
We first know your heating material, heating speed and temperature, other request, and then suggest suitable machine models.
2.Can you customized the logo, color and others?
Yes, we can.
3.How do you control the quality?
We have a QC team comply with TQM to ensure the quality. We will take photos and shoot a video for you if you need.
4.Does the quotation include freight?
The quotation is usually the arrival port for export to domestic ports. You could also arrange to your freight forwarding.
5.What are your payment terms?
Pay 30% T/T as advanced payment, the balance amount can be paid before shipment.
1. We are the top induction heating machine supplier, no agents.
2. We have strong technical team for 19 years product experience and make sure the delivery time.
3. The main components are mainly the international brand, stable and safe.
4. We have professional after-sales teams, and solve the customer problem in time.
1. Factory direct delivery goods.
2. 24 hours of technical service
3. Free workpiece test
4. 19 year experience in product making and application
5. In stock, 12 months warranty periods
6. Lifetime technical and accessory support

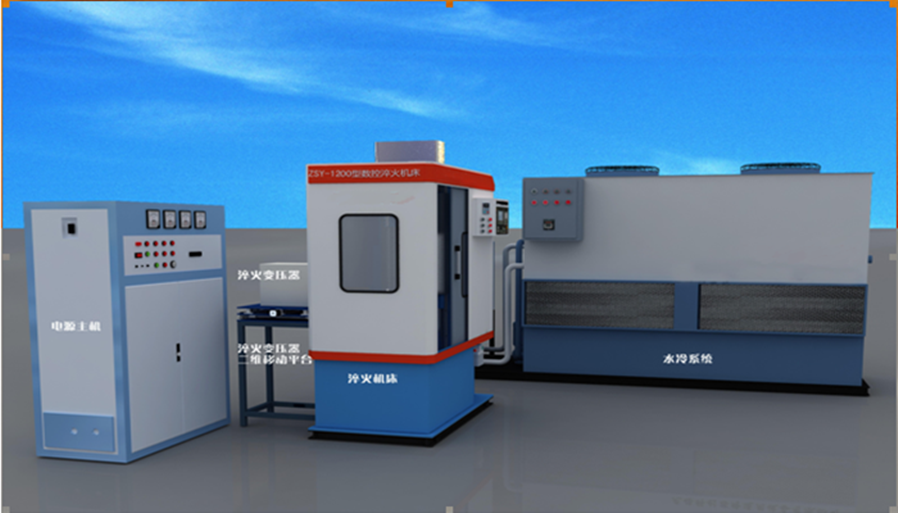

The internal structure of induction heating equipment is complex, including power module, induction coil, control system, cooling system, protection circuit, transformer, capacitor, connection cable, housing and rack and other key components. These components work together to achieve an efficient and precise heating process.
Get Started
The Siemens IGBT (Insulated gate Bipolar transistor) circuit module is a key component used in a wide range of power electronic devices, mainly for efficient energy conversion and control. Circuit module: The IGBT chip, drive circuit, protection circuit, etc. are integrated in a package for easy use.
Get Started
The filter circuit is an important part of ensuring the stable operation of equipment and reducing electromagnetic interference (EMI).
Get Started
DSP High frequency induction heating machine heating power supply is adopted, and the main inverter circuit is controlled separately.
Product name: Conveying straight pipe
Product specifications: φ120×500-3500mm
Product name: Thick steel plate
Product specifications: 1000×100mm
Product name: Car anti-collision bar
Product specifications: φ35×1300mm
Melting equipment is mainly used for the steel, alloy steel, cast iron and other ferrous metal materials and stainless steel, copper, aluminum, zinc and other non-ferrous metal material smelting.
