The power determines the workpiece heating speed and the frequency determines the temperature difference between the workpiece inside and outside.

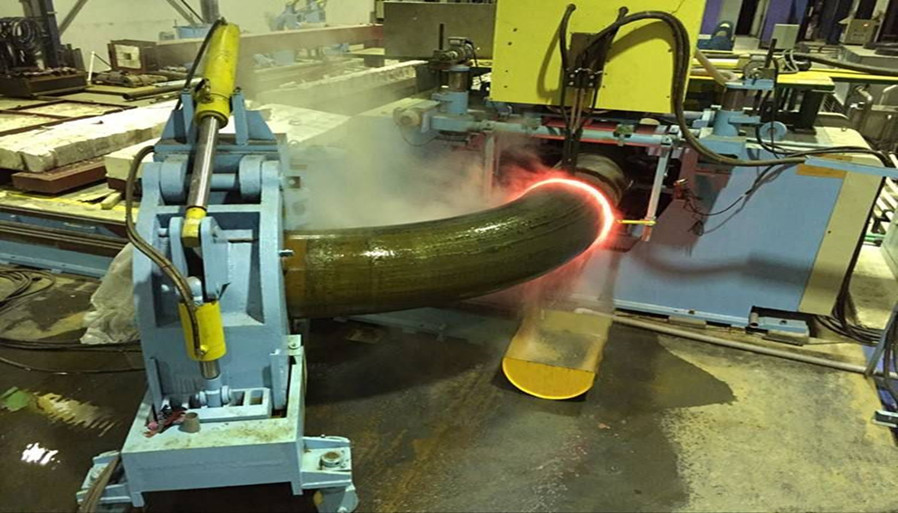

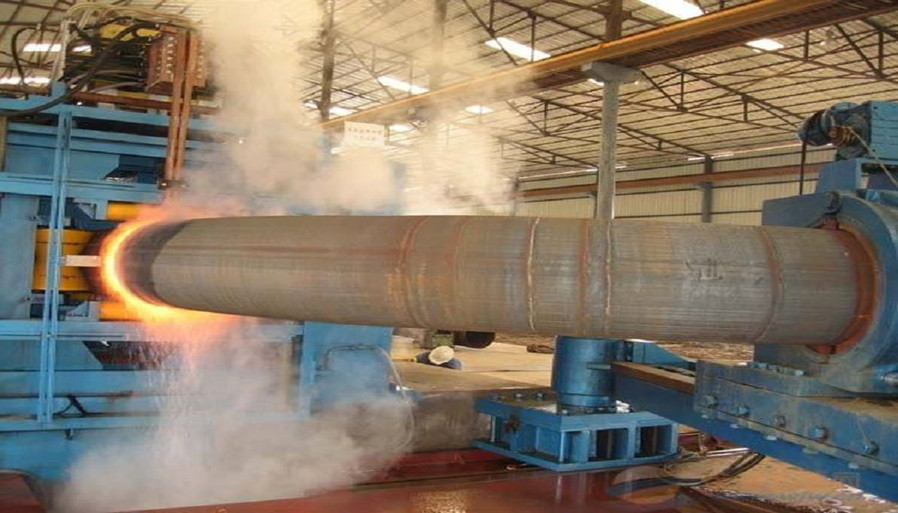

1. The Induction Bending Equipment maximum bending pipe bending diameter is Φ 762 mm, wall thickness is 25 mm; The minimum pipe diameter is Φ 273 mm, wall thickness is 6 mm. The bending radius is 2.5m≤R≤20m, can process the maximum length of 14m. can bend 400 * 400, 300 * 300 square tube.
2. Bend pipe wall thinning rate: < 10%, the bent pipe ovality: < 10%, the wave degrees: hot h / < 2%, flatness: L = 500 < 3, bending radius tolerance < ±10 mm, bending Angle error is ±1°.
3. The material for bending the bending pipe: A: Carbon steel seamless pipe, 20G, A106B, A106C, 235B, 345B, X42,X52,X60 material. B: Alloy steel: 335P12, P22, P91, 12Cr1MoVG, WB36, and so on.

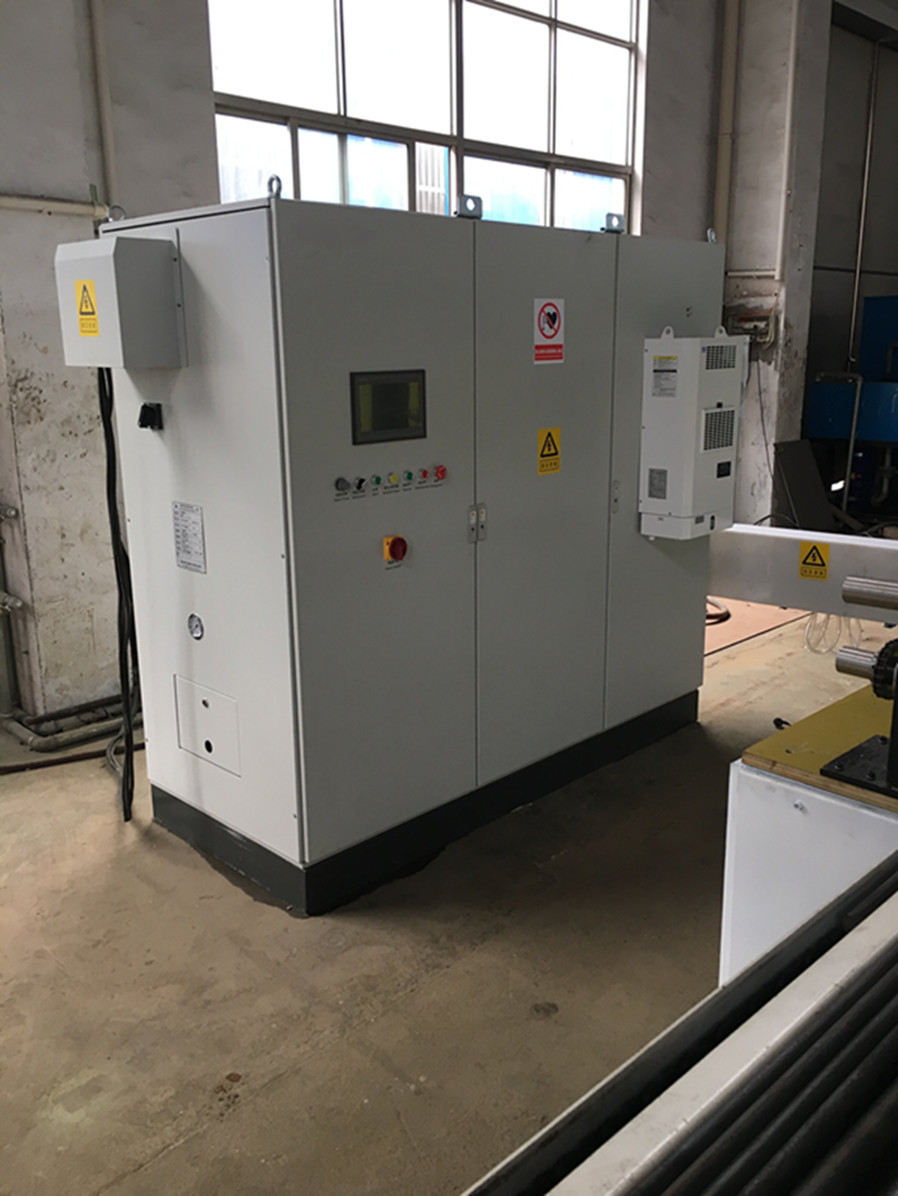

1. Medium frequency power 500KW, frequency 1000HZ.
2. Medium frequency transformer 1000V-2500KVA-1S.
3. Capacitor box 1000V-2000kar-1S 3 pieces
4. Round coil 6 pieces: Φ273, Φ325, Φ406, Φ508, Φ610, Φ762
5. Square coil 2 pieces: 400*400,300*300
Induction heating equipment for hot bending is an efficient and accurate metalworking method, especially for applications where local heating and bending are required.
Induction heating machine 1set
Induction heating transformer 1 set
Foot switch 1 piece
Induction heating coil 1 piece
Cables between the machine and the transformer 1 pair
Fuse 5 pieces
Manual book 1 piece
1.What is your machine price?
We first know your heating material, heating speed and temperature, other request, and then suggest suitable machine models.
2.Can you customized the logo, color and others?
Yes, we can.
3.How do you control the quality?
We have a QC team comply with TQM to ensure the quality. We will take photos and shoot a video for you if you need.
4.Does the quotation include freight?
The quotation is usually the arrival port for export to domestic ports. You could also arrange to your freight forwarding.
5.What are your payment terms?
Pay 30% T/T as advanced payment, the balance amount can be paid before shipment.
1. We are the top induction heating machine supplier, no agents.
2. We have strong technical team for 19 years product experience and make sure the delivery time.
3. The main components are mainly the international brand, stable and safe.
4. We have professional after-sales teams, and solve the customer problem in time.
Induction surface hardening machine details : Power module provides high frequency alternating current, usually using IGBT or MOSFET and other power devices. Induction coil produces alternating magnetic field, shape and size according to the workpiece design. Control system adjust frequency, power and other parameters to achieve accurate control. Cooling system to prevent equipment overheating, commonly used water cooling or air cooling.
Get Started

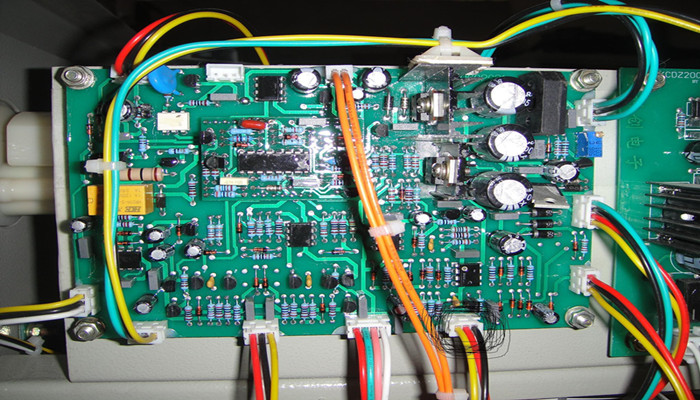

The control board is one of the core components of the induction heating equipment, which is responsible for managing and regulating the operating state of the equipment to ensure the accurate control of the heating process.
Get Started
The filter circuit is an important part of ensuring the stable operation of equipment and reducing electromagnetic interference (EMI).
Get Started
DSP High frequency induction heating machine heating power supply is adopted, and the main inverter circuit is controlled separately.
Product name: Conveying straight pipe
Product specifications: φ120×500-3500mm
Product name: Thick steel plate
Product specifications: 1000×100mm
Product name: Car anti-collision bar
Product specifications: φ35×1300mm
Melting equipment is mainly used for the steel, alloy steel, cast iron and other ferrous metal materials and stainless steel, copper, aluminum, zinc and other non-ferrous metal material smelting.
